WFW OLS

UNITPACKPOWER 48V 60V Electric Bike Battery Pack With 21700 Cells

Regular price $1,458.99 USD

Regular price ~~$0.00 USD~~ Sale price $1,458.99 USD

Sale Sold out

Shipping calculated at checkout.

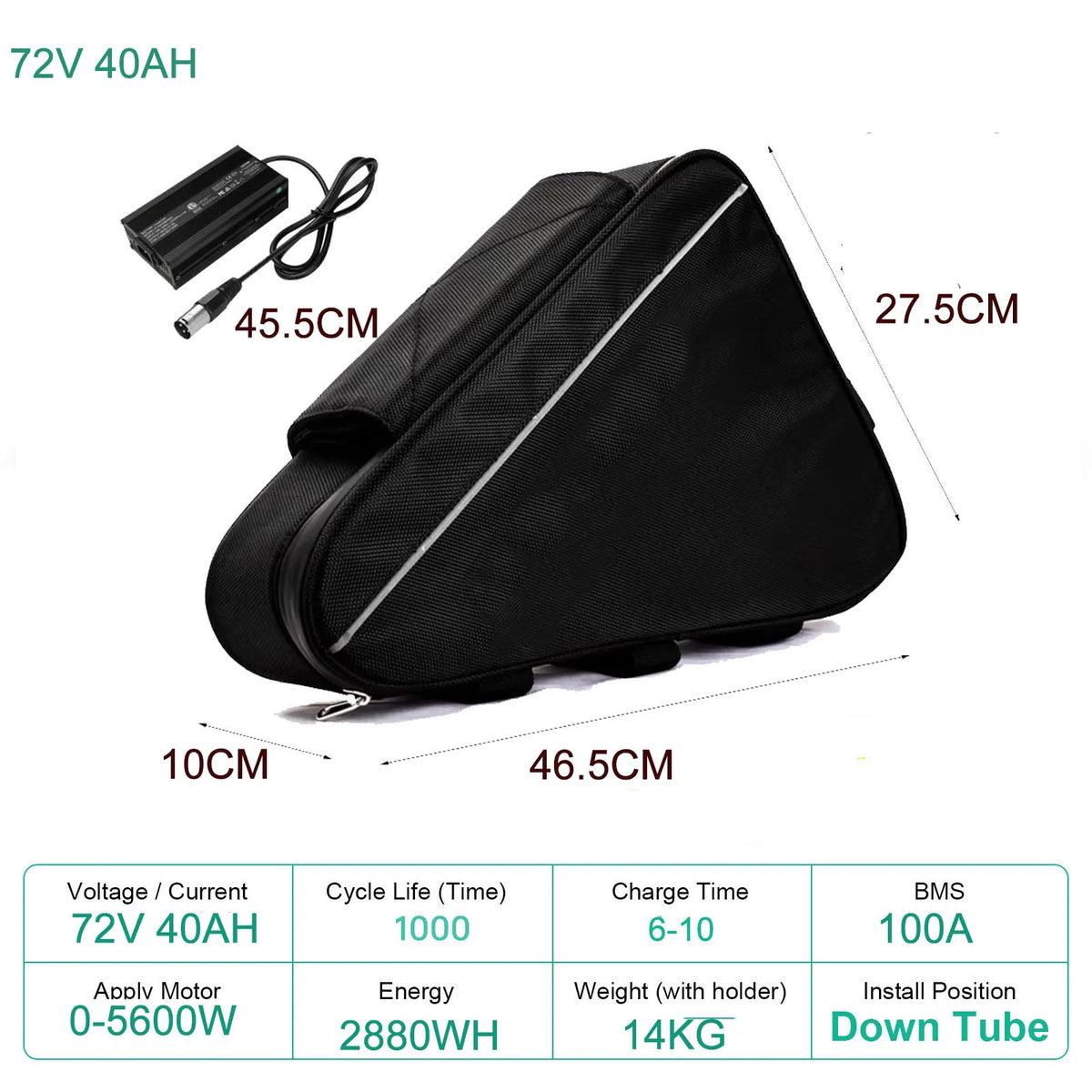

Color triangle 72V 40AHVariant sold out or unavailable 52V 30AH GPSVariant sold out or unavailable 48V 30AH GPSVariant sold out or unavailable 72V 20AH L-GVariant sold out or unavailable 52V 25AH GPSVariant sold out or unavailable 48V 25AH GPSVariant sold out or unavailable 60V 25AH L-GVariant sold out or unavailable 48V 30AH GPS 1Variant sold out or unavailable 52V25Ah L-GVariant sold out or unavailable 48V25Ah L-GVariant sold out or unavailable 60V 20.8AH L-G5200Variant sold out or unavailable 72V15Ah L-G5000Variant sold out or unavailable 52V 30AH L-G5800Variant sold out or unavailable 60V20Ah L-G5000Variant sold out or unavailable 48V 30AH L-G5800Variant sold out or unavailable 52V25Ah Sam-sungVariant sold out or unavailable 36V 40.6AH L-G5800Variant sold out or unavailable 48V25Ah Sam-sungVariant sold out or unavailable 36V35AhL-G5000Variant sold out or unavailable triangle 72v35ahVariant sold out or unavailable 48v 26ah L-G5200Variant sold out or unavailable 52V 26AH L-G5200Variant sold out or unavailable 72V 15.6AHL-G 5200Variant sold out or unavailable 60V 23.2AHL-G5800Variant sold out or unavailable triangle 52v50ahVariant sold out or unavailable 72V 17.5AHL-G5800Variant sold out or unavailable triangle 48v50ahVariant sold out or unavailable 52v 30ah with RackVariant sold out or unavailable 48V 30AH with RackVariant sold out or unavailable 48v 20ah HL-3Variant sold out or unavailable

Ships From GermanyVariant sold out or unavailable United StatesVariant sold out or unavailable China MainlandVariant sold out or unavailable Russian FederationVariant sold out or unavailable

Quantity Quantity

(0 in cart)

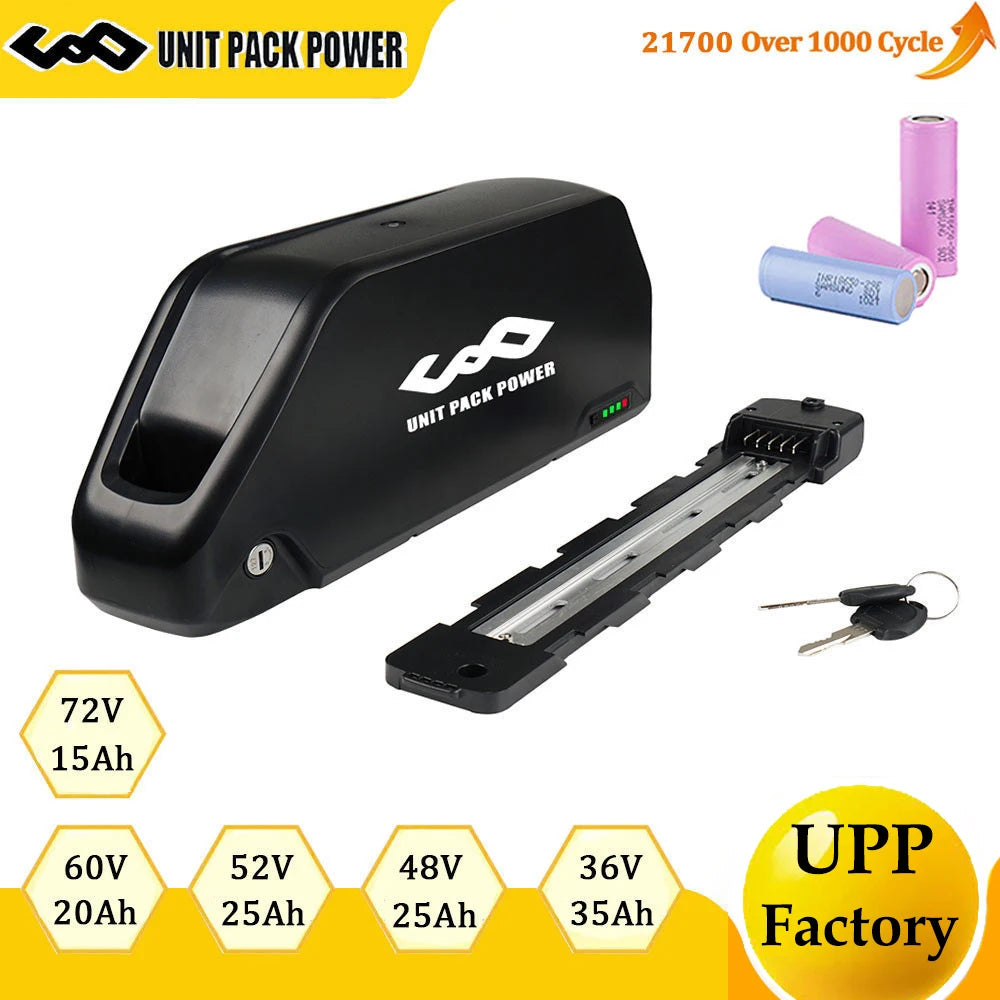

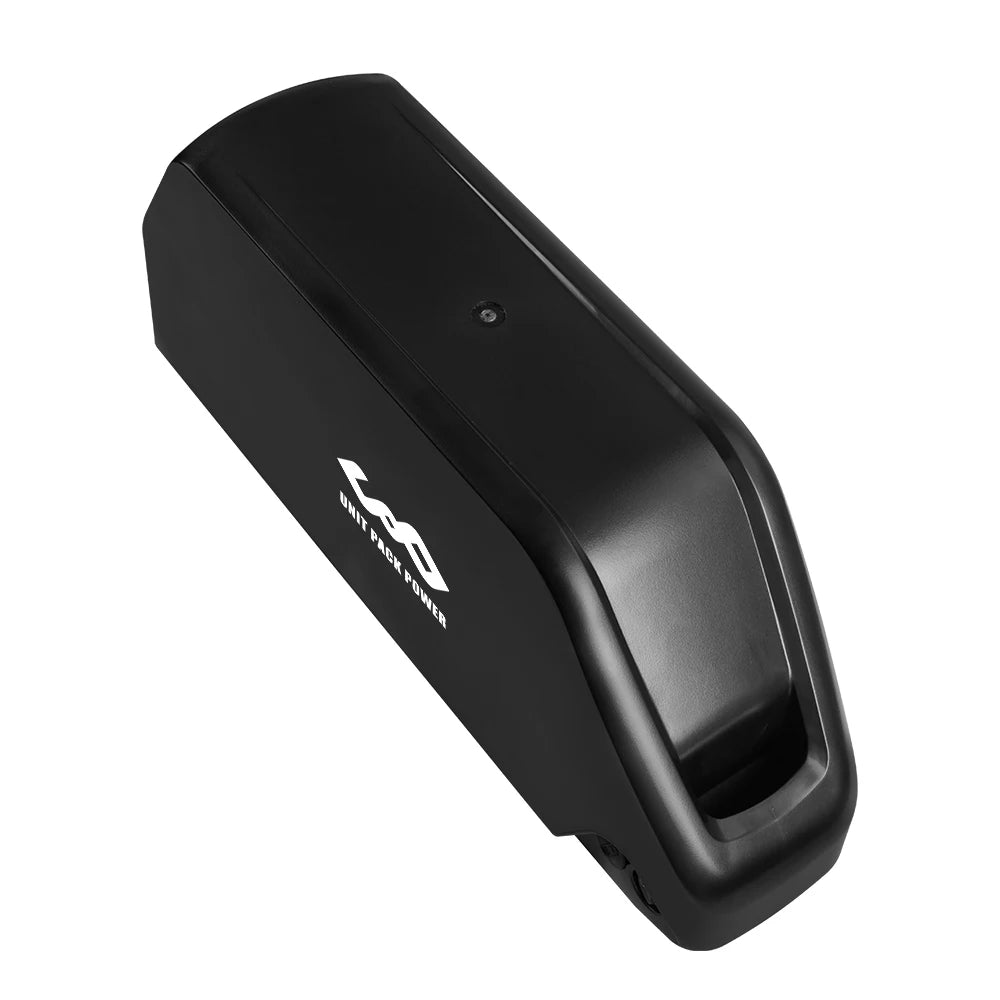

You can extend your commute distance and streamline your bike’s profile with this slim downtube lithium pack engineered for direct frame mounting.

You select the precise voltage (36V to 72V) and capacity (up to 35Ah) to perfectly match your motor controller.
You gain reliable daily range because authentic Grade A Samsung 50E and LG 4800mAh 21700 cells endure over 1,000 full discharge cycles.
The embedded BMS safeguards your system by regulating continuous current between 40A and 50A while monitoring cell temperature.

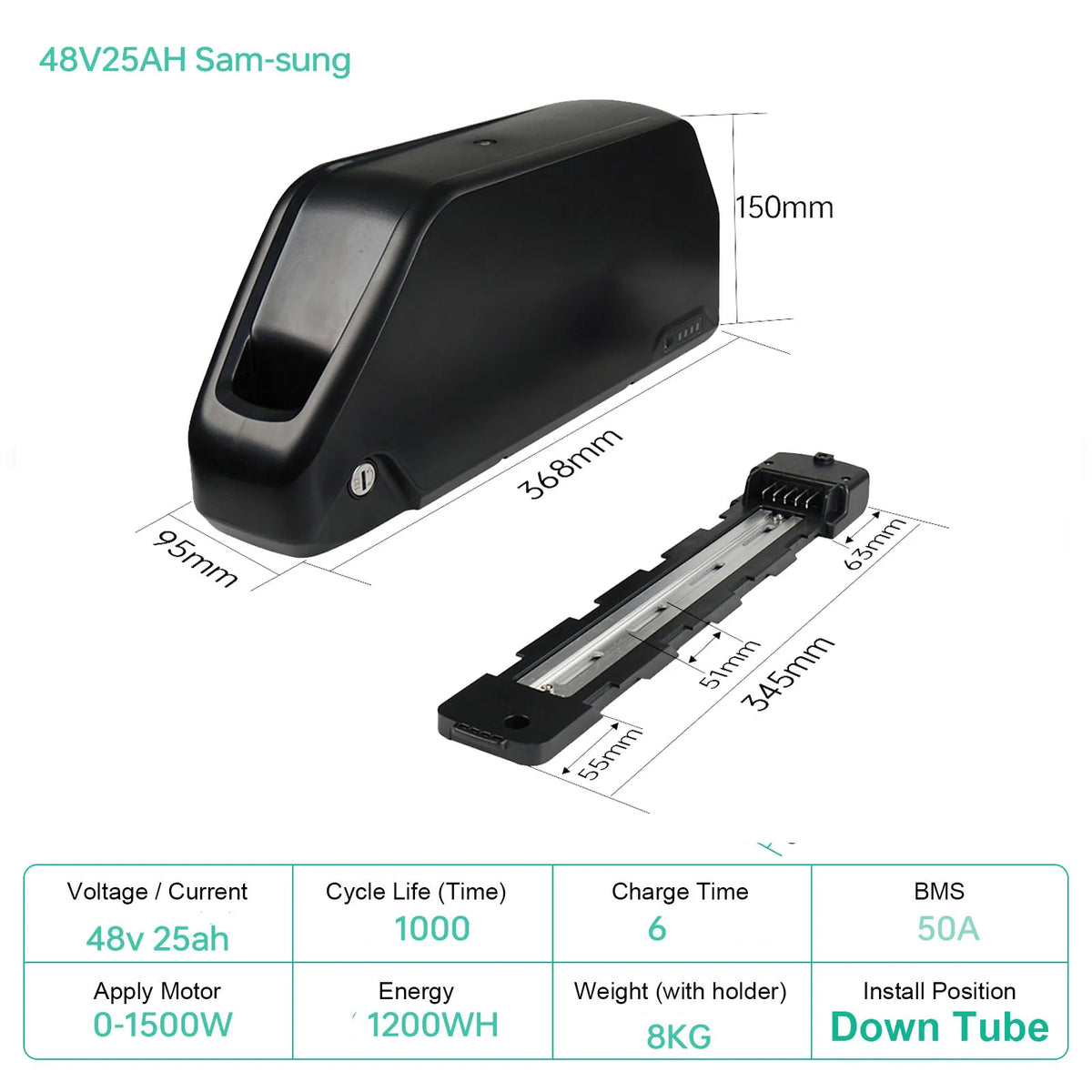

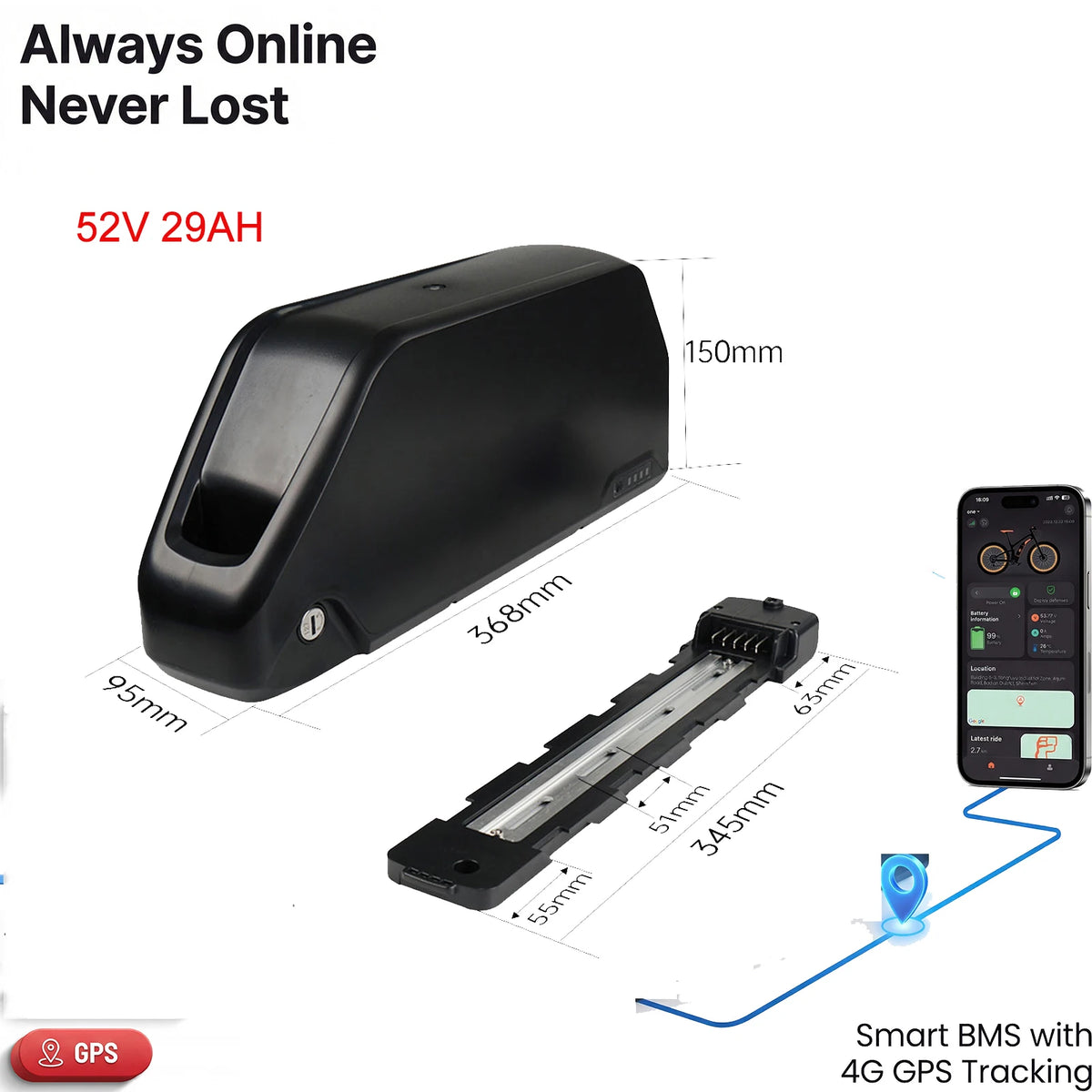

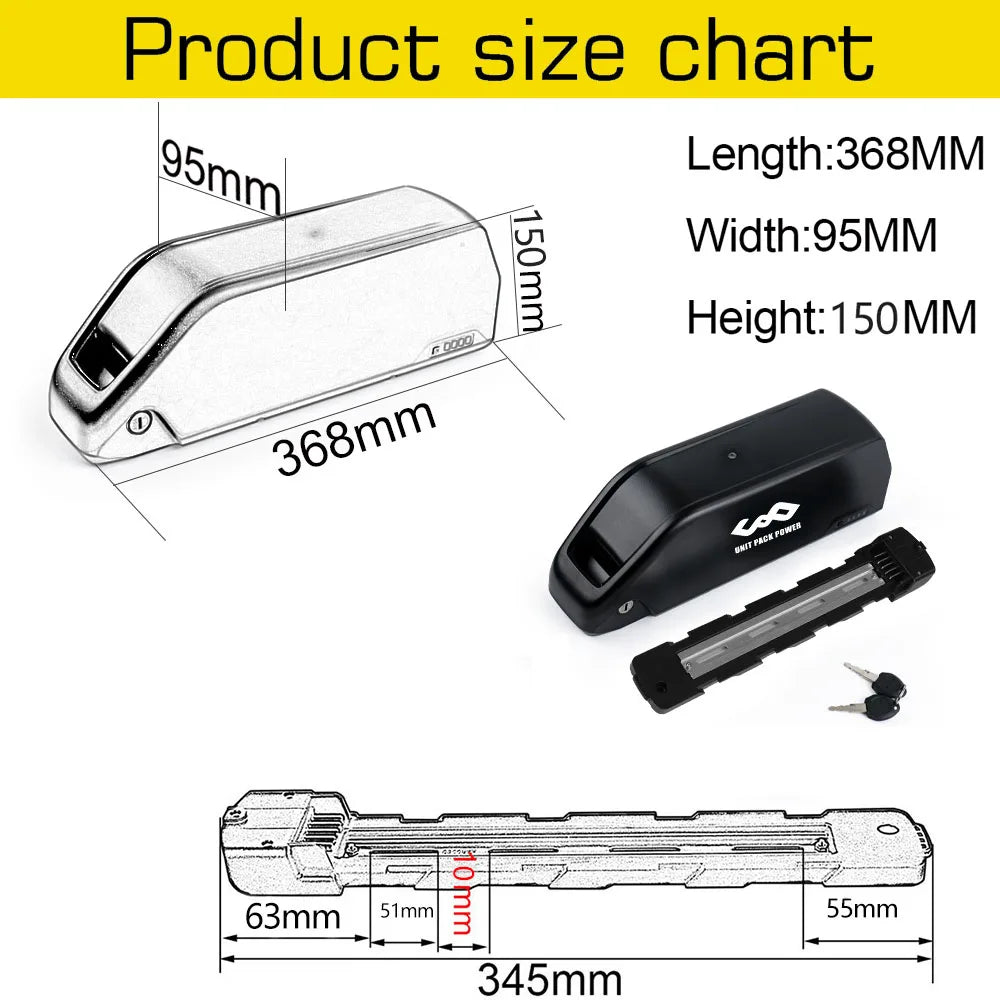

You maximize storage space since the rigid 368 × 95 × 150 mm shell integrates cleanly into your downtube and weighs between 5kg and 8kg.

Parameter	36V33.6Ah 40A	48V24Ah 40A	52V24Ah 40A	60V19.2Ah 50A	72V14.4Ah 40A
Nominal Voltage	36V	48V	52V	60V	72V
Nominal Capacity	33.6Ah	24Ah	24AH	19.2AH	14.4AH
Nominal Watt Hour	1209WH	1152WH	1248WH	1152WH	1036WH
Composed Type	10S7P	13S5P	14S5P	16S4P	20S3P
Built-in BMS	40A	40A	40A	50A	40A
Fit Motor Power	36V 250W 350W 500W 750W 1000W maximum	48V 350W 500W 750W 1000W 1500W max	48V/52V 350W 500W 750W 1000W 1500W max	60V 500W 750W 1000W 1500W 2000W max	72V 500W 750W 1000W 1500W 1800W 2000W 2250W Max


Charge Cut-off Voltage	42V	54.6V	58.8V	67.2V	84V
Discharge Cut-off Voltage	28V	36.4V	39.2V	44.8V	56V
Battery Weight	6KG	5.7KG	6KG	5.5KG	5.3KG
Battery Charger	42V3A	54.6V3A	58.8V3A	67.2V3A	84V2A
Battery Pack Cell	L-G 4800mAh Grade A 21700 cells over 1000 Cycles life
Dimension	36895150mm	36895150mm	36895150mm	36895150mm	36895150mm

Parameter	36V35Ah 40A	48V25Ah 45A	52V25Ah 40A	60V20Ah 50A	72V15Ah 40A
Nominal Voltage	36V	48V	52V	60V	72V
Nominal Capacity	35Ah	25Ah	25Ah	20AH	15AH
Nominal Watt Hour	1260WH	1200WH	1300WH	1200WH	1080WH
Composed Type	10S7P	13S5P	14S5P	16S4P	20S3P
Built-in BMS	40A	40A	40A	50A	40A
Fit Motor Power	36V 250W 350W 500W 1000W maximum	48V 350W 500W 750W 1000W 1500W max	48V/52V 350W 500W 750W 1000W 1500W max	60V 500W 750W 1000W 1500W 2000W max	72V 500W 750W 1000W 1500W 1800W 2000W 2250W Max


Charge Cut-off Voltage	42V	54.6V	58.8V	67.2V	84V
Discharge Cut-off Voltage	28V	36.4V	39.2V	44.8V	56V
Battery Weight	6KG	5.7KG	6KG	5.5KG	5.3KG
Battery Charger	42V3A	54.6V3A	58.8V3A	67.2V3A	84V2A
Battery Pack Cell	DC 5000mah /Sam--ung 50E mAh Grade A 21700 cells 800-1000 Cycles life
Dimension	36895150mm	36895150mm	36895150mm	36895150mm	36895150mm
